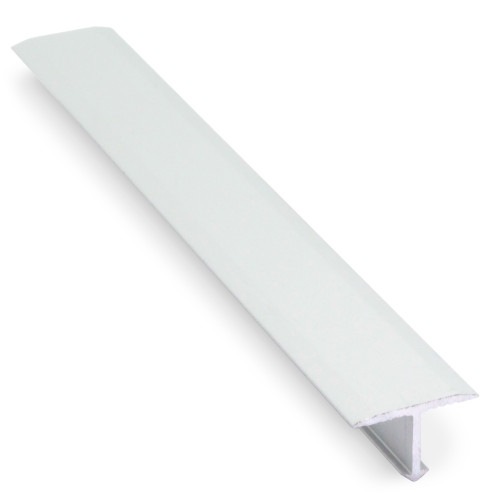

This T-profile from Genesis connects flooring materials with little or no height difference. The T-shape allows for retrofitting: the profile is pressed into a joint filled with silicone or adhesive, thus connecting ceramic, parquet, natural stone, concrete, or laminate. The edges are covered so that the sides of the flooring material are not damaged. This version is intended for an 8 mm tile thickness and has a length of 2.7 meters. The finish is matte silver.
Product & function
The profile is extruded from AA 6063 T6 aluminium and anodized according to DIN 17611. For outdoor use, the manufacturer recommends a powder-coated finish.
Application & compatibility

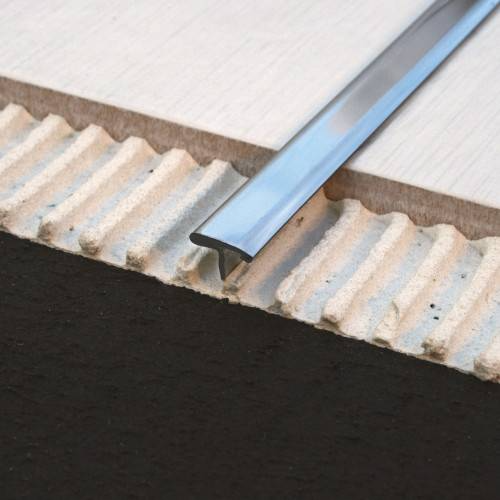

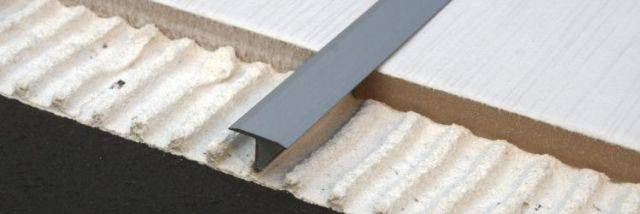

The profile is intended for joints between flooring materials. Choose the version according to the thickness of your tile, so that the top of the profile is flush with the tile surface. We do not supply a corner piece for this series. Cut the corner at a 45-degree miter; using a miter box will help you maintain a controlled angle.
Use & points of attention
- Clean the inside of the joint to a depth of at least 9 mm.
- Fill the joint with one-component silicone or an equivalent product.
- Press the profile into the joint and align it.
Aluminium is sensitive to alkali. Cement-based materials become alkaline in combination with moisture, so remove adhesive and grout residues from visible surfaces and ensure that the profile is fully embedded. In the case of chemical or mechanical loading, first check whether aluminium is suitable for the situation. No special maintenance is required. An oxide film can be removed with a common polishing agent, but it will return. Damaged anodizing can only be repaired by recoating.
Main features
- Extruded aluminium, AA 6063 T6 alloy
- Anodized according to DIN 17611
- No special maintenance required
- Finish corners with a miter cut; no corner piece for this series
Technical specifications
| Application |
Transition profile for floor finishes |
| Alloy |
Aluminium AA 6063 T6 / UNS A96063 |
| Anodizing standard |
DIN 17611 |
| Natural oxide layer |
approx. 0.2 microns |
| Polished and anodized oxide layer |
5 microns |
| Matte finish oxide layer |
up to 20 microns |
| Powder-coated oxide layer |
100 microns |
Frequently asked questions
Which profile thickness do I need? The thickness of the profile follows the thickness of your tile. Measure the tile and choose the version that matches it; the profile must not protrude above the tile surface.
Can this profile withstand moisture? Aluminium is resistant to normal moisture exposure in bathrooms and kitchens. However, pay attention to fresh cement and grout residues: they become alkaline with moisture and can damage the surface. Wipe them away while they are still wet.
How deep should the profile be in the adhesive? The mounting flange should be fully embedded. After pressing it in, apply another layer of adhesive over the flange so that no voids remain.
Can I cut this profile to size? Yes. Cut the profile with a fine-toothed saw and neatly finish the cut edge.
