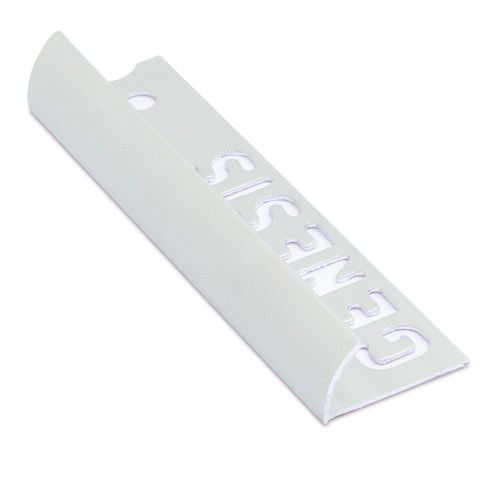

This round tile profile from Genesis has a fully rounded visible side and protects the edge of ceramic or a similar hard surface. This version is intended for a tile thickness of 12 mm and has a length of 2.5 metres. The finish is matte silver.
Product & function
The profile is extruded from AA 6063 T6 aluminium and anodised according to DIN 17611.
Application & compatibility
The profile is intended for wall and floor tiles. Choose the version that matches the thickness of your tile, so that the top of the profile is flush with the tile surface. We do not supply a corner piece for this series. Cut the corner at a 45-degree miter; using a miter box will help you keep the angle controlled.
Use & points to consider
- Choose the profile that matches the thickness of the tile.
- Apply tile adhesive over the area forming the edge of the tiled surface.

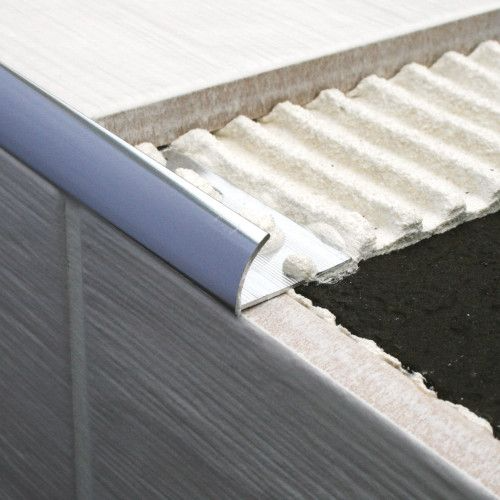

- Press the perforated mounting flange into the adhesive and align the profile. Secure mechanically if necessary.
- Apply additional adhesive over the flange so that it is fully embedded.
- Bed the tiles firmly. The tile surface should be flush with the top of the profile: the profile should not be higher than the tile, but approximately 1 mm lower.
- Fill the joint completely.
Aluminium is sensitive to alkalis. Cement-based materials become alkaline when combined with moisture, so remove adhesive and grout residues from visible surfaces and ensure that the profile is fully embedded. In the event of chemical or mechanical loading, first check whether aluminium is suitable for the situation. No special maintenance is required. An oxide film can be removed with a standard polishing agent, but it will return. Damaged anodising can only be repaired by recoating.
Key features
- Extruded aluminium, AA 6063 T6 alloy
- Anodised according to DIN 17611
- No special maintenance required
- Miter the corners; no corner piece for this series
Technical specifications
| Finish |
See the product specifications |
Frequently asked questions
Which profile thickness do I need? The thickness of the profile matches the thickness of your tile. Measure the tile and choose the version that matches it; the profile must not protrude above the tile surface.
Can I cut this profile to size? Yes. Cut the profile with a fine-toothed saw and neatly finish the cut edge.
How deep should the profile be embedded in the adhesive? The mounting flange should be fully embedded. After pressing it in, apply another layer of adhesive over the flange so that no voids remain.
Can I cut this profile to size? Yes. Cut the profile with a fine-toothed saw and neatly finish the cut edge.
