This Caral surface-mounted thermostatic valve, which is mounted on the wall, is the valve from the Caral thermostatic rain shower set, supplied separately. It has a connection for the rain shower bar and a connection for a shower hose.
Design & finish
The valve is made of brass with a high-gloss chrome finish. You mount it on the wall (surface-mounted), so without a concealed part in the wall.
Application & compatibility

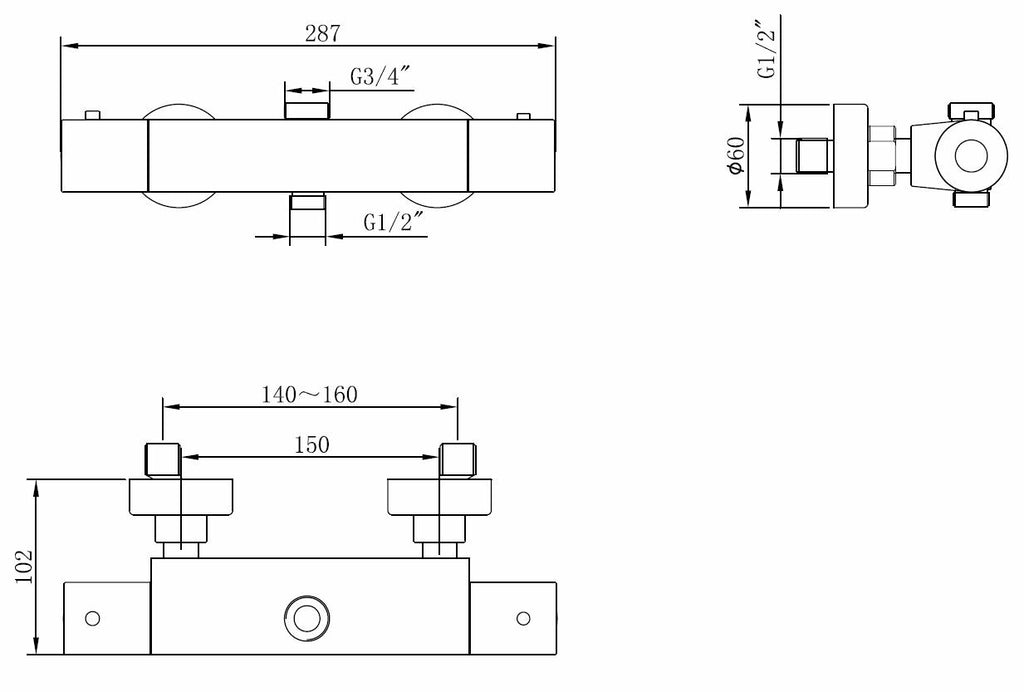

The valve connects to two wall couplings with a center-to-center distance of 15 cm. With the included S-couplings, you can bridge a center-to-center distance of 140 to 160 mm. The connection is 1/2 inch. The valve operates at a water pressure between 0.5 and 5 bar; at a higher pressure, you place a pressure-reducing valve before the valve. The pressure difference between hot and cold water must not exceed 2 bar. The valve is not suitable for a close-in boiler or any other low-pressure system.
Installation & use
The cold water inlet is on the right. Gaskets for the wall couplings are not included. The maximum temperature is preset at 38 °C; make sure the hot water is at least 10 °C warmer than this setting. If the thermostatic internal mechanism wears out, you only replace that part. Clean the valve with a soft cloth, without using aggressive cleaning agents.
Main features
- Surface-mounted thermostatic valve for the wall, preset at 38 °C
- Connection for bar and shower hose
- Center-to-center distance 15 cm, S-couplings for 140 to 160 mm
- Brass with high-gloss chrome finish
Technical specifications
| Feature |
Value |
| Series |
Caral |
| Type |
Thermostatic shower valve |
| Installation |
Surface-mounted, on the wall |
| Center-to-center distance |
15 cm |
| Connection |
1/2 inch |
| Water pressure |
0.5 to 5 bar |
| Maximum temperature |
38 °C, preset |
| Material |
Brass |
| Color |
Chrome, high-gloss |
| Item number |
29.6105 |
| EAN |
8719323032286 |
Frequently asked questions
Does this thermostatic valve work with a close-in boiler? No. The valve is not suitable for a close-in boiler or any other low-pressure system; it requires a minimum water pressure of 0.5 bar.
Does the valve fit if my wall couplings are not exactly 15 cm apart? With the included S-couplings, you can connect the valve to wall couplings that are 140 to 160 mm apart.
Spare parts
The following spare parts fit this product.
- Short 2-way 20-tooth diverter for Caral rain shower set (25.3580)
- Thermostatic internal mechanism for Caral and Rombo thermostatic valves (29.3982)
